Solar Panel Junction Box – No Drilling Required for RV, Yacht or Flat Roof Roofs

Solar Junction Box with Bracket – No-Drill Installation for Motorhome, Yacht and Flat Roof

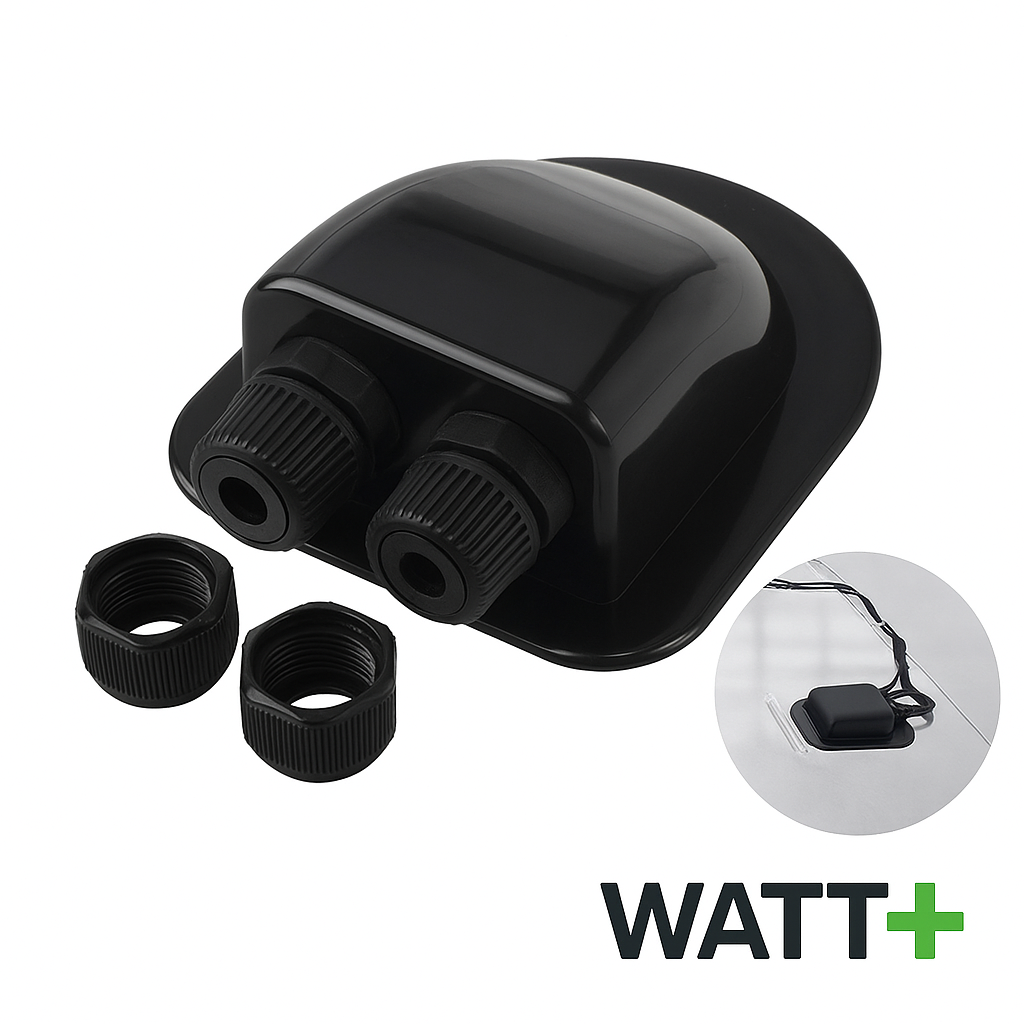

This mounting bracket with integrated junction box is specially designed for photovoltaic installations on flat roofs such as motorhomes, converted vans, yachts or boats . Thanks to its drilling-free fixing, it protects your surfaces while ensuring a quick and durable installation.

🔧 Main features:

• No-drill installation – attaches with glue, without damaging the surface
• High-quality material – reinforced plastic with UV protection, weather-resistant
• Lifespan: more than 20 years
• Easy to assemble and disassemble
• 100% Brand New and High Quality Product

📐 Technical specifications:

• Material: UV-resistant plastic
• Dimensions: 115 x 95 mm
• Available colors: White or Black
• Installation location: RV roof, yacht deck, flat roof

📦 Package contents:

• 1 x Junction box with solar panel holder (pre-assembled connector)

This product is perfect for vanlife enthusiasts, boat owners, or any mobile solar installation. Give your solar system a clean, reliable mounting solution with no impact on your surfaces .
